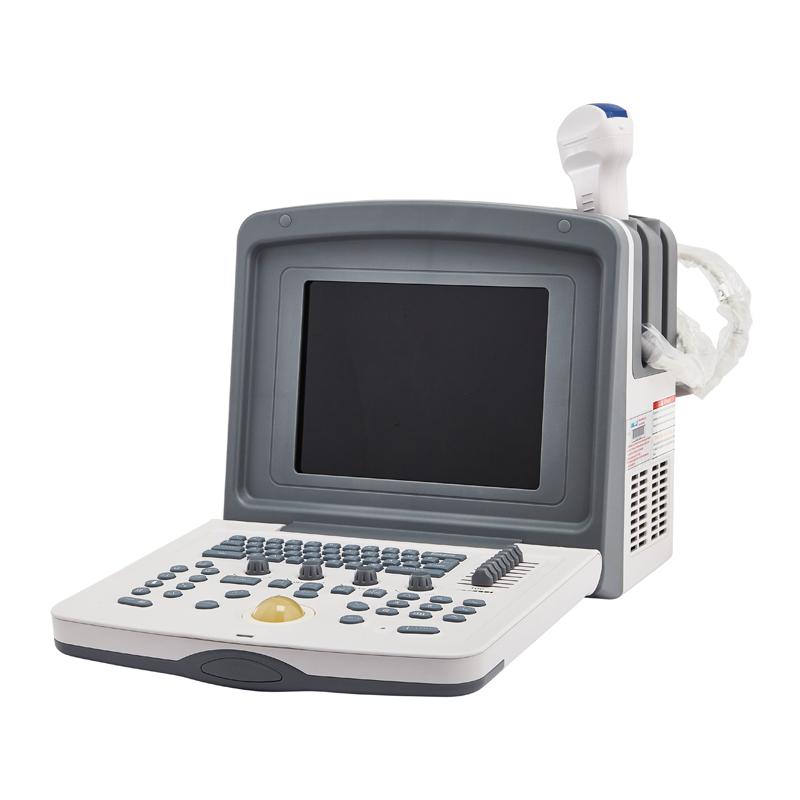

Ultrasound 9618 Vet

The Ultrasound 9618 Vet provides the excellent image quality with high resolution and definition.

Features:

With revolutionary technology of full digital beam-forming, WED-9618V, provides the excellent image quality with high resolution and definition. The selectable multiple transducers, powerful measuring and analyzing software packages to extend its application to broader fields.

Technical Specifications

• Scanning mode: Convex/Linear
• Display modes: B,B+B,B+M,M,4B
• Scanning depth: 60-130mm (6.5MHz Rectal Linear)
• Cine-loop: 511 frames (Max)
• Image permanent storage: 32 frames
• Image conversion: up/down, left/right. black/white
• Local zoom: 2 times both in real-time and frozen
• Measurement: Distance, circumference, area, volume, EF rate, heart rate
• Probes connector: 2
• Port: PAL-D video out, USB 2.0
• Monitor: 10 inch SVGA
• Comment: date & time, name, sex, age. doctor, hospital, annotation (whole screen comment input)

OB measurements:

• Equine – GA (GSD)
• Bovine – GA (BL,SL, HL)
• Swine – GA (HL)
• Sheep – GA (USD)
• Cat – GA, EDD (HD, BD)
• Dog – Ga, EDD (GSD, CRL, HD, BD)

Standard Configuration

1 x 6.5MHZ Rectal Linear Probe

Options:

1. 5MHz Linear
2. 0MHz Micro-Convex
3. 5MHz Convex
4. Cart
5. Video printer
