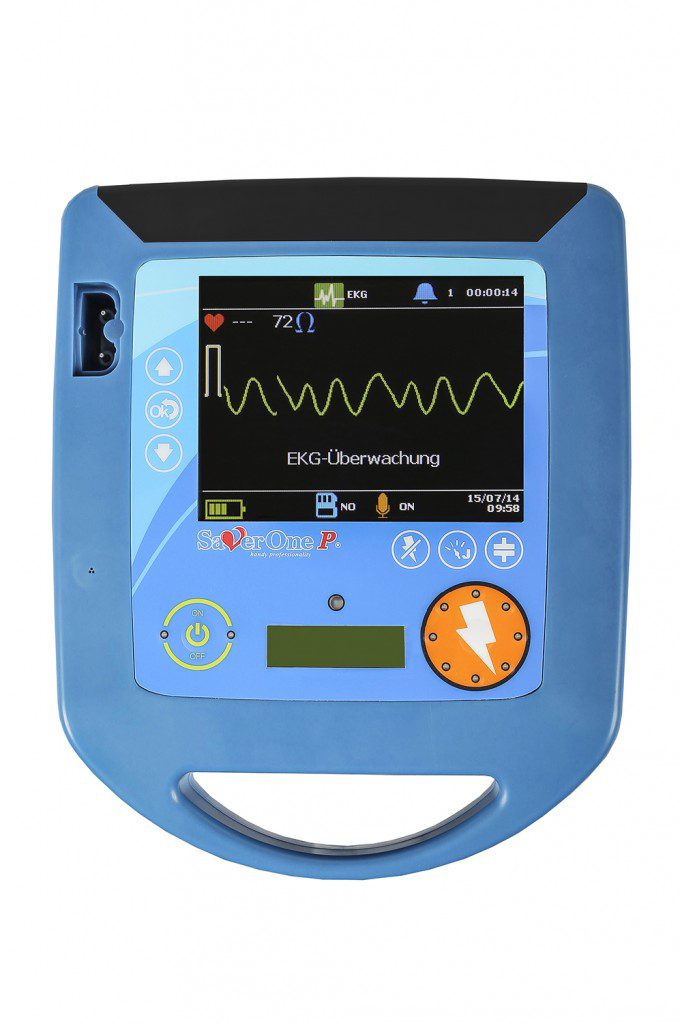

AED Saver 1 Pro

AED Saver 1 Pro is reliable for any BLS rescuer, can be easily switched in a Manual Defibrillator giving to ALS responders the best decision-making control for a manual shock timing or an electric cardioversion (synchronized shock)

Defibrillator

Operation:   AED Semi-Automatic (default)ECG Monitoring Manual Asynchronous or Synchronous (used to convert atrial or ventricular tachyarrthythimias)

Energies:     Standard max 200J or Power max 360J

Waveform:    Adaptive BTE (biphasic truncated exponential)conforming to patient chest’s impedance

Energy type:   Escalating from 50 to 360J

AED Protocols:   Adult Standard escalating 150, 200, 200JAdult Power escalating 200, 250, 360JPediatric (Standard or Power) 50J fixed(AED adult shock protocols can be customized)

Manual Protocol: Selected by users from 50 to 360J. For electric cardioversion (in Synchronous mode) the shock is synchronized to occur with the R wave of the ECG

Energy Display: Screen provides the energy to deliver both in Manual mode or AED mode

Charging time: ≤9 seconds with a new and fully charged battery depleted battery will result in a longer charging time

Analysis time: IEC/EN 60601-2-4 from 4 to 15 seconds

Impedance: 20-200 ohms

Sensitivity: IEC/EN 60601-2-4 (AHADB, MITDB source), 97%

Specificity: IEC/EN 60601-2-4 (AHADB, MITDB source), 99%

Controls: 2 buttons: ON/OFF, shock button;3 buttons: to surf the menu;3 buttons: select energy, charge, disarm the device

Indicators: Status LED indicator informing on device condition Battery gauge with remaining capacity rate Audible alerts and text display with service alarms

Upgradeable: through a USB cable or memory card



ECG Monitoring

Operations: Through defibrillation pads or standard ECG electrodes attached to a separate 2-Lead patient monitoring reusable cable SAV-C0017

ECG size: Manual setting through the menu

Heart Rate: 30-200 bpm

Sweep Speed: 25 mm/sec

Standard: IEC/EN 60601-2-27 less then the points 202.6.2.101;201.12.1.101.12,13; 208.6.6.2.101 not performed for the intended use of the device, as it is not intended for environments such as operating theatres or intensive care units

Display: 5,7” TFT colour, 640 x 480 pixel
